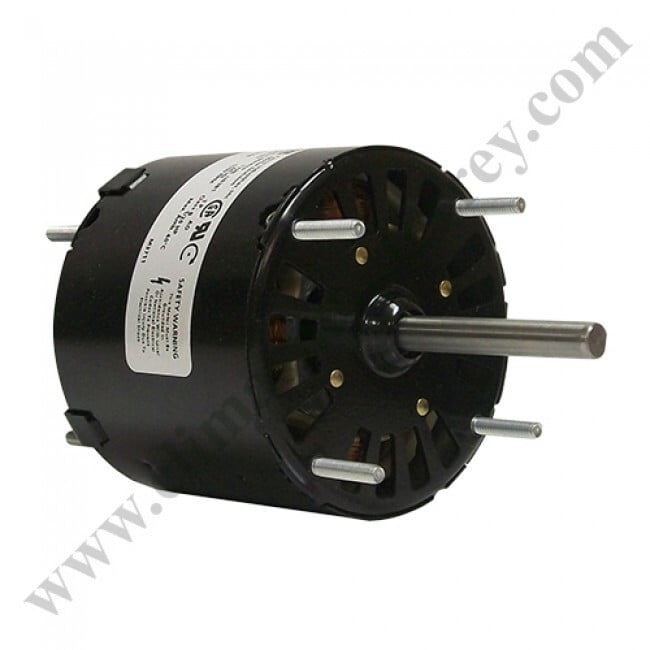

Motor Fasco, 1/20 Hp, 230 V, 1500 Rpm, 1 Velocidad, Rotacion Cw, Chumaceras - D188
No retornable
MXN$1,137.00
Categorías Relacionadas
Detalles del producto
Especificaciones
Nameplate Specifications
| Phase: | 1 | Output HP: | 1/20 Hp |
| Output KW: | 0.04 kW | Voltage: | 230 V |
| Speed: | 1500 rpm | Service Factor: | 1 |
| Frame: | 3.3 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| Frequency: | 60 Hz | Current: | 0.90 A |
| Duty: | Air Over | Insulation Class: | B |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Clockwise Shaft End |
| Mounting: | Extended Studs | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Steel |
| Shaft Type: | Flat | Overall Length: | 5.47 in |
| Frame Length: | 2.62 in | Shaft Diameter: | 0.313 in |
| Shaft Extension: | 2.30 in |
General Specifications
| UPC: | 815585028871 | Weight: | 3.20 LB |
| Packaged Length: | 8.00 IN | Packaged Width: | 3.38 IN |
| Packaged Height: | 3.38 IN | Country of Origin: | Mexico |
- Motor de uso general
- 3.3" de diámetro
- Poste sombreado
- Protegido térmicamente
- Extremo del eje abierto y bastidor del extremo del cable, carcasa cerrada, aire sobre
- Aislamiento de clase B, ambiente de 40 °C
- Cojinete de manguito
- Eje de 5/16" de diámetro con eje plano
- Cables de 12"
- Espárragos extendidos, extremo del eje y extremo del cable
Motores
- Cantidad por Caja1
- Capacidad en HP1/20
- RPM1500
- Cantidad de Velocidades1
- Voltaje220/1/60
- Polos4
- RotacionCW
- RodamientosBaleros
- Numero de Flechas1
- Diámetro de Flecha (Pulgadas)5/16
- Longuitud de Flecha (Pulgadas)2.44
- Armazón (Frame)3.3
