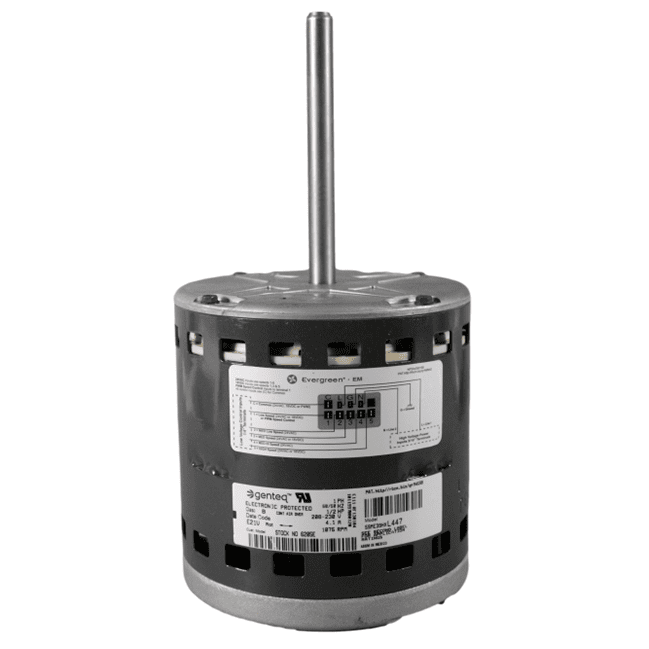

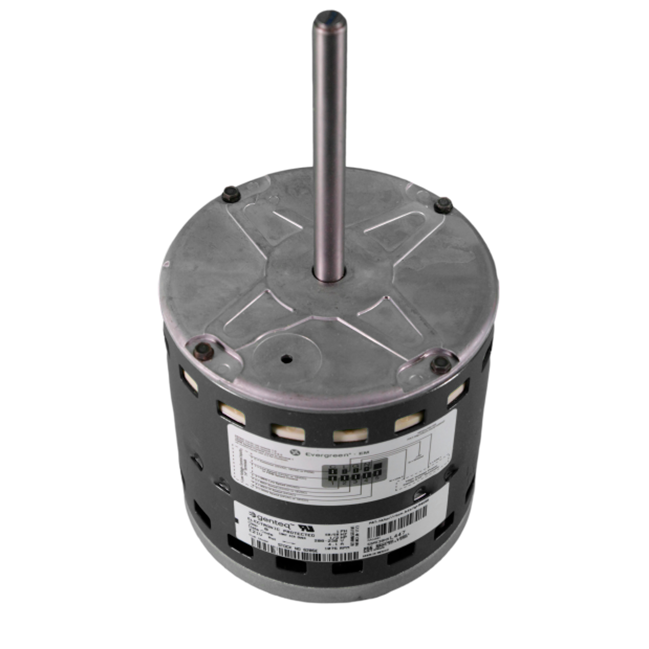

Motor Evergreen Em 1/2 Hp, 220 Volts, Ccw/Cw - 6205E
MXN$4,800.00
Cotizar Ahora
- Motor de soplador de repuesto Evergreen EM - ECM
- 5,6" de diámetro - Marco de 48"
- Conmutación electrónica (ECM), protección electrónica
- Hasta cinco configuraciones de torque constante controladas por entradas de 24 VCA
- Totalmente variable (compatible con PWM) de 600 a 1100 RPM
- Aire libre, aislamiento clase B, temperatura ambiente de 55 °C
- Cojinete de bolas
- Eje de 1/2" de diámetro con parte plana

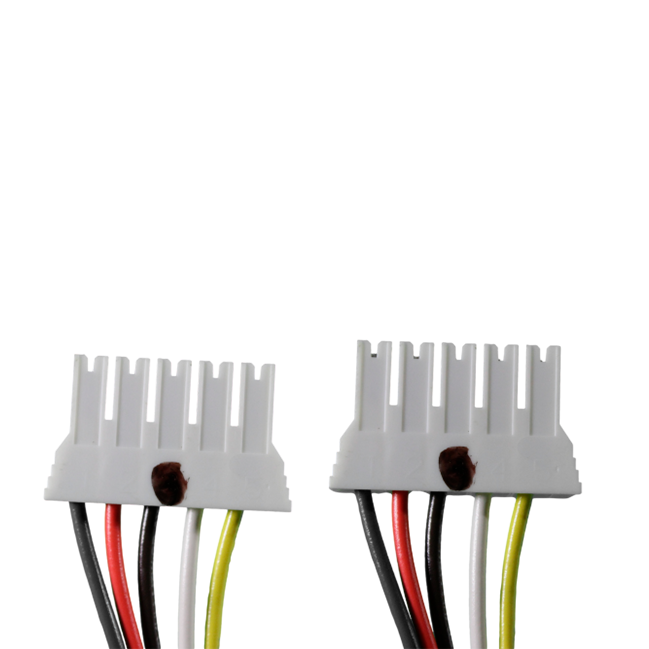

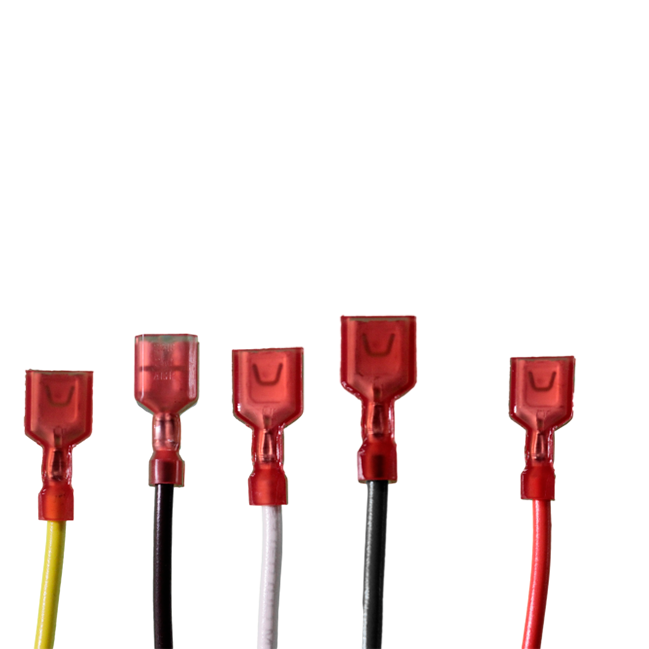

- Cables de 42"
- Soporte para banda abdominal (banda abdominal no incluida)
Detalles del producto
Especificaciones
Nameplate Specifications
| Phase: | 1 | Output HP: | 1/2 Hp |
| Output KW: | 0.37 kW | Voltage: | 208-230 V |
| Speed: | 1075 rpm | Service Factor: | 1 |
| Frame: | 48 | Enclosure: | Open Air Over |
| Thermal Protection: | No Protection | Ambient Temperature: | 40 °C |
| Frequency: | 60 Hz | Current: | 4.1 A |
| Duty: | Continuous Air Over | Insulation Class: | B |
| UL: | Recognized | CSA: | N |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Electronically Commutated Motor | Poles: | 12 |
| Rotation: | Counterclockwise/Clockwise | Mounting: | Round |
| Motor Orientation: | Hor | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Flat | Overall Length: | 10.67 in |
| Frame Length: | 4.82 in | Shaft Diameter: | 0.500 in |
| Shaft Extension: | 4.92 in |
General Specifications
| UPC: | 815585020493 | Weight: | 13.00 LB |
| Packaged Length: | 15.70 IN | Packaged Width: | 6.70 IN |
| Packaged Height: | 7.10 IN | Country of Origin: | Mexico |
Motores
- Cantidad por Caja1
- Capacidad en HP1/2
- RPM1075
- Cantidad de Velocidades1
- Voltaje208/230-1-60
- Polos12
- RotacionReversible
- RodamientosBaleros
- Numero de Flechas1
- Diámetro de Flecha (Pulgadas)1/2
- Longuitud de Flecha (Pulgadas)5.0
- Diametro del Cuerpo (Pulgadas)5.6
- Armazón (Frame)48
