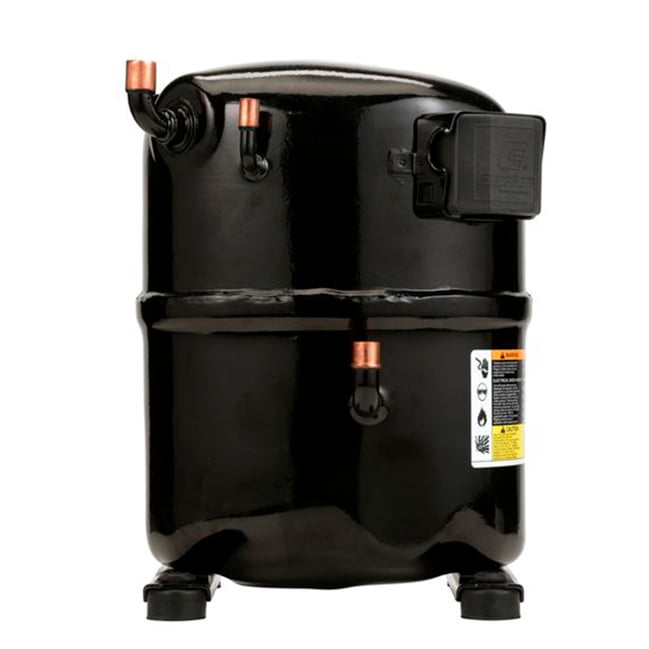

Compresor Copeland Hermetico Serie C Alta Temperatura Btus 38,200, 208-230/1/60, R22,Hp 3 Cfh 493 - Cr37Kq-Pfv-240Bn
Compresor Copeland Hermético CR37KQ-PFV-240BN
Datos Técnicos
HCFC, R-22, 60 Hz, 1 fase, aire acondicionado de 208/230 V
Air Conditioning
Performance
Evaporator Temp(ºF) 45 45
Condensing Temp(ºF) 130 100
Return Gas (ºF) 65 65
Liquid Temp (ºF) 115 85
Capacity (Btu/hr) 36800 47300
Power (W): 3640 3120
Current (Amps): 17.4 15.4
EER (Btu/Wh): 10.1 15.2
Mass Flow (Ibs/hr): 540 610
Sound Data
Sound Power (dBA): 75 Avg 80 Max
Vibration (mils(peak-peak)): 2.2 Avg 3.2 Max
Record Date: 1998-01-30
Compresor Copeland Hermético CR37KQ-PFV-240BN
Mechanical
Displ(in^3/Rev): 4.06
Displ(ft^3/hr): 493.53
Overall Length (in): 9.25
Overall Width (in): 9.25
Overall Height (in): 13.63
Mounting Length (in): 7.50
Mounting Width (in): 7.50
Mounting Height (in): 14.00*
Suction Size (in): 3/4 Stub
Discharge Size (In): 3/8 Stub
Initial Oil Charge (oz): 40
Oil Recharge (oz): 38
Net Weight (ibs): 65.0
Internal Free Volume (in^3): 345.0
Horse Power: NA
*Overall compressor height on Copeland Brand Product´s specified mounting grommets.
Compresor Copeland Hermético CR37KQ-PFV-240BN
Electrical
LRA-High*: 100.0
LRA Low*: NA
LRA-Half Winding: NA
MCC (Amps): 26.0
Max Operating Current: 20.8
RLA(=MCC/1.4;use for contactor selection): 18.6
RLA(=MCC/1.56;use for breaker & wire size selection): 16.7
RPM: 3500
UL File No: NA
UL File Date: NA
*Low and High refer to the low and high nominal voltage ranges for which the motor is approved.
Capacitors
Type: NA
Part No: NA
Low MFD: NA
High MFD: NA
Volts: NA
User Description: NA
Compresor Copeland Hermético CR37KQ-PFV-240BN
Alternate Applications
Refrigerante: R-22 HFC
Voltaje: 200
Fase: 1
Freq (Hz): 50
Aplicación: Temperatura media de UL
Refrigerante: R-22 HCFC
Voltaje: 200/230
Fase: 1
Freq (Hz): 60
Aplicación: Temperatura media de UL
Refrigerante: R-22 HCFC
Voltaje: 200
Fase: 1
Freq (Hz): 50
Aplicación: Alta temperatura
Refrigerante: R-22 HCFC
Voltaje: 200
Fase: 1
Freq (Hz): 50
Aplicación: Aire acondicionado.
HCFC, R-22, 60 Hz, 1 fase, aire acondicionado de 208/230 V
Air Conditioning
Performance
Evaporator Temp(ºF) 45 45
Condensing Temp(ºF) 130 100
Return Gas (ºF) 65 65
Liquid Temp (ºF) 115 85
Capacity (Btu/hr) 36800 47300
Power (W): 3640 3120
Current (Amps): 17.4 15.4
EER (Btu/Wh): 10.1 15.2
Mass Flow (Ibs/hr): 540 610
Sound Data
Sound Power (dBA): 75 Avg 80 Max
Vibration (mils(peak-peak)): 2.2 Avg 3.2 Max
Record Date: 1998-01-30
Compresor Copeland Hermético CR37KQ-PFV-240BN
Mechanical
Displ(in^3/Rev): 4.06
Displ(ft^3/hr): 493.53
Overall Length (in): 9.25
Overall Width (in): 9.25
Overall Height (in): 13.63
Mounting Length (in): 7.50
Mounting Width (in): 7.50
Mounting Height (in): 14.00*
Suction Size (in): 3/4 Stub
Discharge Size (In): 3/8 Stub
Initial Oil Charge (oz): 40
Oil Recharge (oz): 38
Net Weight (ibs): 65.0
Internal Free Volume (in^3): 345.0
Horse Power: NA
*Overall compressor height on Copeland Brand Product´s specified mounting grommets.
Compresor Copeland Hermético CR37KQ-PFV-240BN
Electrical
LRA-High*: 100.0
LRA Low*: NA
LRA-Half Winding: NA
MCC (Amps): 26.0
Max Operating Current: 20.8
RLA(=MCC/1.4;use for contactor selection): 18.6
RLA(=MCC/1.56;use for breaker & wire size selection): 16.7
RPM: 3500
UL File No: NA
UL File Date: NA
*Low and High refer to the low and high nominal voltage ranges for which the motor is approved.
Capacitors
Type: NA
Part No: NA
Low MFD: NA
High MFD: NA
Volts: NA
User Description: NA
Compresor Copeland Hermético CR37KQ-PFV-240BN
Alternate Applications
Refrigerante: R-22 HFC
Voltaje: 200
Fase: 1
Freq (Hz): 50
Aplicación: Temperatura media de UL
Refrigerante: R-22 HCFC
Voltaje: 200/230
Fase: 1
Freq (Hz): 60
Aplicación: Temperatura media de UL
Refrigerante: R-22 HCFC
Voltaje: 200
Fase: 1
Freq (Hz): 50
Aplicación: Alta temperatura
Refrigerante: R-22 HCFC
Voltaje: 200
Fase: 1
Freq (Hz): 50
Aplicación: Aire acondicionado.
Compresores Herméticos
- ExentoSi
- TipoSoldable
- Conexión de Succión3/4 recta
- Conexión de Descarga1/2 codo
- Voltaje208-230/1/60
- HP3
- CFH493
- Capacidad (btu/h) Alta temperatura (45/130) °F R2238,200
Compresor Reciprocante
- AplicaciónAlta
- Capacidad BTU/hr38200
- H.P3
- Conexión Descarga1/2 Codo
- Conexión Succión3/4 Recta
- RefrigeranteR 22
- Voltaje230/3/60
